C4EH100FA-C | C4EH203A-C-Mapesen Technology Limited CCTV Security Camera Factory

Products

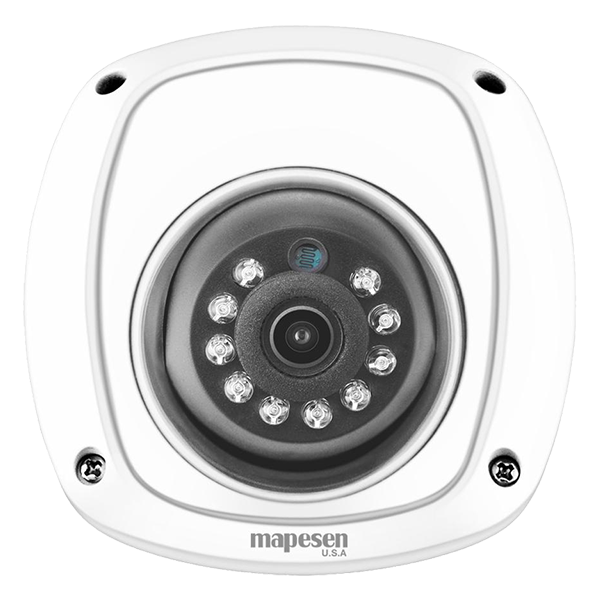

· 720P/2MP Indoor Car Camera Front View / Rear View

· 3.6mm Fixed Lens (2.8mm optional).

· Records high-quality 720P HD analog video for steady and clear vehicle monitoring.

· Equipped with 10 IR LEDs to achieve outstanding night vision with a 10–15m effective range.

· Features DWDR, 3D/2D DNR and ICR day/night function to keep images clear in strong backlight environments.

· Supports AHD/TVI/CVI/CVBS output switched by UTC, widely compatible with various vehicle DVRs.

· Easy to operate with OSD menu, UTC control and multiple languages for global customers.

· Sturdy vehicle‑specific design with metal housing and 4P aviation connector for enhanced stability.

· Performs perfectly in a wide temperature range from -20°C to +50°C for all‑weather application.

· Ultra-convenient plug-and-play design for quick installation without complex configuration.

Model Number	C4EH100F-C
Camera
Image Sensor	1/3.02’’Color CMOS Image Sensor
Max.Resolution	720P
Min. Illumination	0.01Lux@(F1.6,AGC ON),0LUX with IR
Electronic Shutter	Auto
Video Standard	PAL/NTSC
Synchronization	Inter-Sync
Lens
Focal Length	3.6mm @F1.6
Lens Resolution	3MP
Illuminator
Light Distance	10-15m
IR LEDS	10pcs Infrared LEDs
Day/Night Mode	Auto/B&W
Image Settings	Contrast/sharpness/saturation/DNR
Frame Rate	720P@25fps/30fps
WDR	Digital WDR
UTC	Support
OSD Support	Support
Noise Reduction	3D DNR/2D DNR
White Balance	Auto/Manual
Exposure	Brightness/exposure mode/gain control
Video Output	AHD/TVI/CVI/CVBS Switch by UTC
Language	ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
Audio
Audio Input	No
Audio Output	No
Interface
Video Output	1 x 4P Vehicle Aviation Connector
Power	1 x DC power port
General
Type	Metal Housing
Power Supply	12V DC±10%
Lightning Protection	Support
Power Consumption	Max 3W
Working Humidity	Relative humidity less than 90%
Operating Temperature	-20°C to [$add]50°C (-14°F to 122°F)
Storage Temperature	-40°C to [$add]60°C (-40°F to 140°F)

Model Number	C4EH100FA-C
Camera
Image Sensor	1/3.02’’Color CMOS Image Sensor
Max.Resolution	720P
Min. Illumination	0.01Lux@(F1.6,AGC ON),0LUX with IR
Electronic Shutter	Auto
Video Standard	PAL/NTSC
Synchronization	Inter-Sync
Lens
Focal Length	3.6mm @F1.6
Lens Resolution	3MP
Illuminator
Light Distance	10-15m
IR LEDS	10pcs Infrared LEDs
Day/Night Mode	Auto/B&W
Image Settings	Contrast/sharpness/saturation/DNR
Frame Rate	720P@25fps/30fps
WDR	Digital WDR
UTC	Support
OSD Support	Support
Noise Reduction	3D DNR/2D DNR
White Balance	Auto/Manual
Exposure	Brightness/exposure mode/gain control
Video Output	AHD/TVI/CVI/CVBS Switch by UTC
Language	ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
Audio
Audio Input	Support, built in mircophone
Audio Output	No
Interface
Video Output	1 x 4P Vehicle Aviation Connector
General
Type	Metal Housing
Power Supply	12V DC±10%
Lightning Protection	Support
Power Consumption	Max 3W
Working Humidity	Relative humidity less than 90%
Operating Temperature	-20°C to [$add]50°C (-14°F to 122°F)
Storage Temperature	-40°C to [$add]60°C (-40°F to 140°F)

Model Number	C4EH203F-C
Camera
Image Sensor	1/3.02’’Color CMOS Image Sensor
Max.Resolution	2MP 1920(H)×1080(V)
Min. Illumination	0.01Lux@(F1.6,AGC ON),0LUX with IR
Electronic Shutter	Auto
Video Standard	PAL/NTSC
Synchronization	Inter-Sync
Lens
Focal Length	3.6mm @F1.6
Lens Resolution	3MP
Illuminator
Light Distance	10-15m
IR LEDS	10pcs Infrared LEDs
Day/Night Mode	Auto/B&W
Image Settings	Contrast/sharpness/saturation/DNR
Frame Rate	1920(H)×1080(V)@25fps/30fps
WDR	Digital WDR
UTC	Support
OSD Support	Support
Noise Reduction	3D DNR/2D DNR
White Balance	Auto/Manual
Exposure	Brightness/exposure mode/gain control
Video Output	AHD/TVI/CVI/CVBS Switch by UTC
Language	ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
Audio
Audio Input	No
Audio Output	No
Interface
Video Output	1 x 4P Vehicle Aviation Connector
General
Type	Metal Housing
Power Supply	12V DC±10%
Lightning Protection	Support
Power Consumption	Max 3W
Working Humidity	Relative humidity less than 90%
Operating Temperature	-20°C to [$add]50°C (-14°F to 122°F)
Storage Temperature	-40°C to [$add]60°C (-40°F to 140°F)

Model Number	C4EH203FA-C
Camera
Image Sensor	1/3.02’’Color CMOS Image Sensor
Max.Resolution	2MP 1920(H)×1080(V)
Min. Illumination	0.01Lux@(F1.6,AGC ON),0LUX with IR
Electronic Shutter	Auto
Video Standard	PAL/NTSC
Synchronization	Inter-Sync
Lens
Focal Length	3.6mm @F1.6
Lens Resolution	3MP
Illuminator
Light Distance	10-15m
IR LEDS	10pcs Infrared LEDs
Day/Night Mode	Auto/B&W
Image Settings	Contrast/sharpness/saturation/DNR
Frame Rate	1920(H)×1080(V)@25fps/30fps
WDR	Digital WDR
UTC	Support
OSD Support	Support
Noise Reduction	3D DNR/2D DNR
White Balance	Auto/Manual
Exposure	Brightness/exposure mode/gain control
Video Output	AHD/TVI/CVI/CVBS Switch by UTC
Language	ENGLISH/Chinese/Tradition Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues
Audio
Audio Input	Support, built in mircophone
Audio Output	No
Interface
Video Output	1 x 4P Vehicle Aviation Connector
General
Type	Metal Housing
Power Supply	12V DC±10%
Lightning Protection	Support
Power Consumption	Max 3W
Working Humidity	Relative humidity less than 90%
Operating Temperature	-20°C to [$add]50°C (-14°F to 122°F)
Storage Temperature	-40°C to [$add]60°C (-40°F to 140°F)
